Up to 800,000 points per second with 14 crossed blue laser lines.
Capture objects with 7 high-powered parallel blue laser lines.
Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.
One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.
Precision: Up to 0.01 mm Accuracy: Up to 0.03 mm
160 x 70 mm at 200 mm 320 x 215 mm at 400 mm
Scan Shiny or Black Surfaces
Up to 7,000,000 Points/s in Full-field Structured Light Mode Up to 800,000 Points/s in Multi-line Laser Mode
This handy set of shaped marker blocks makes setting up featureless object scans much faster.
Revo Scan 5 MetroX does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.

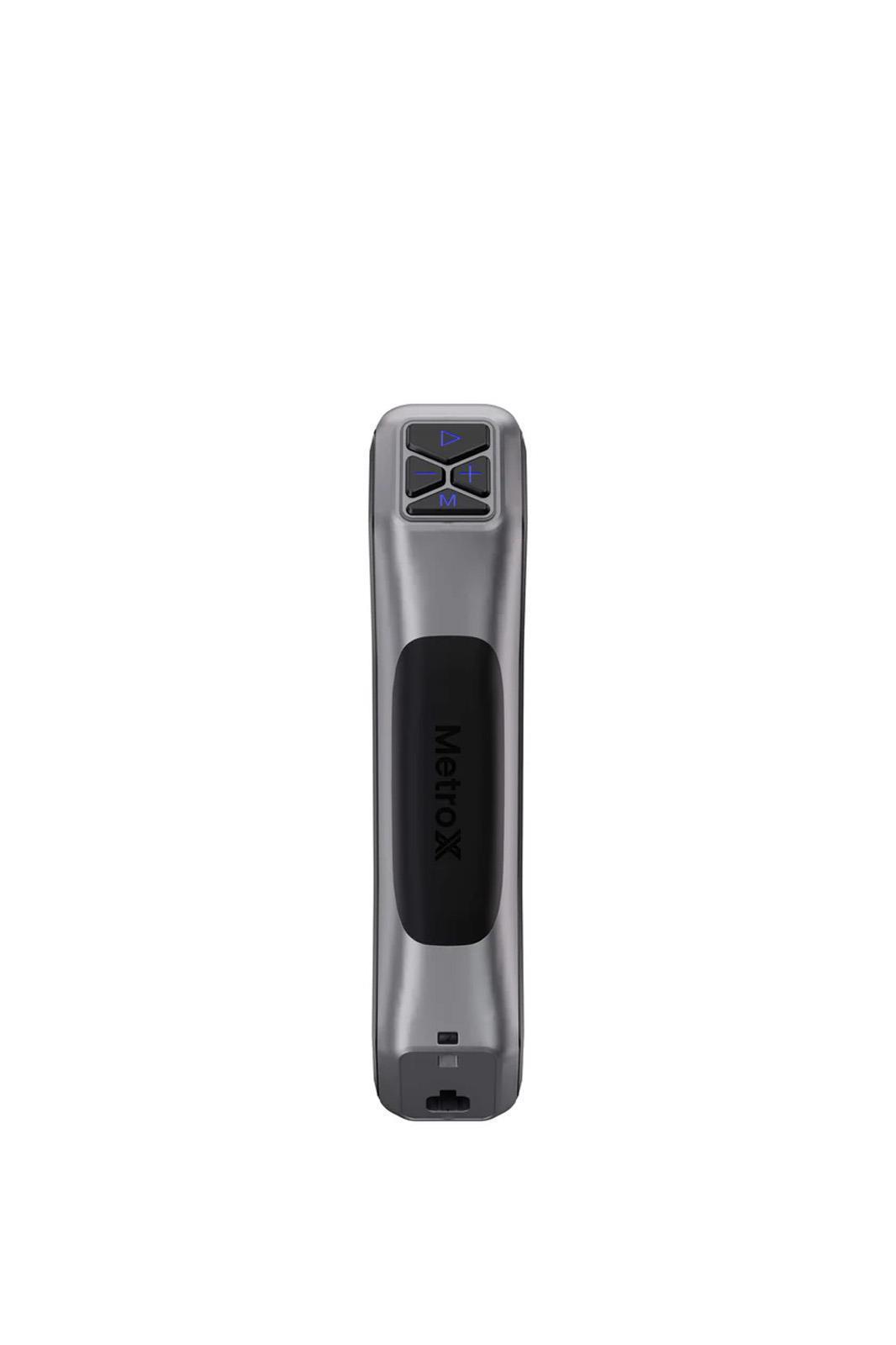

4 Buttons
Create Vibrant 3D Models
Advanced Edition

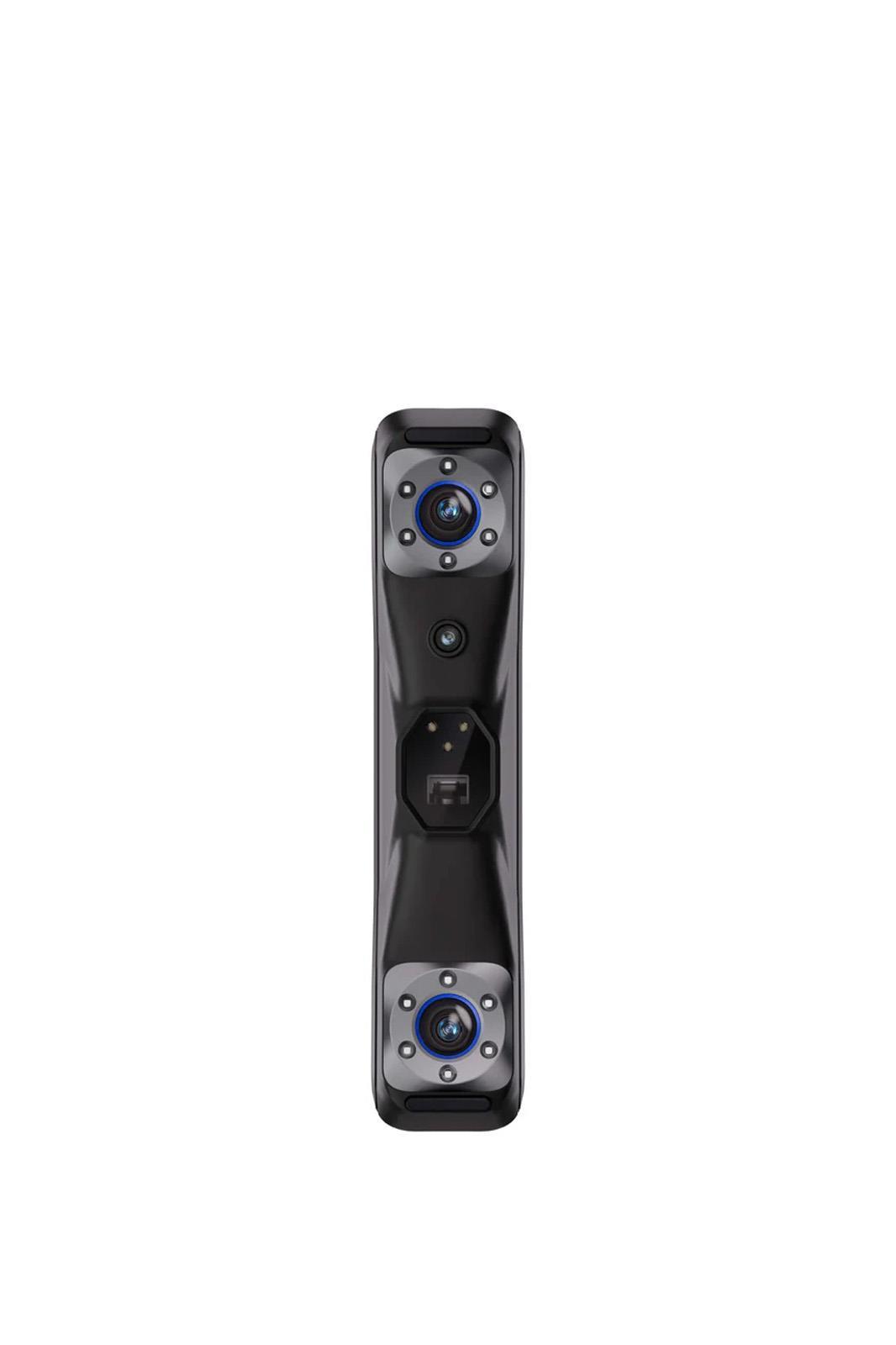

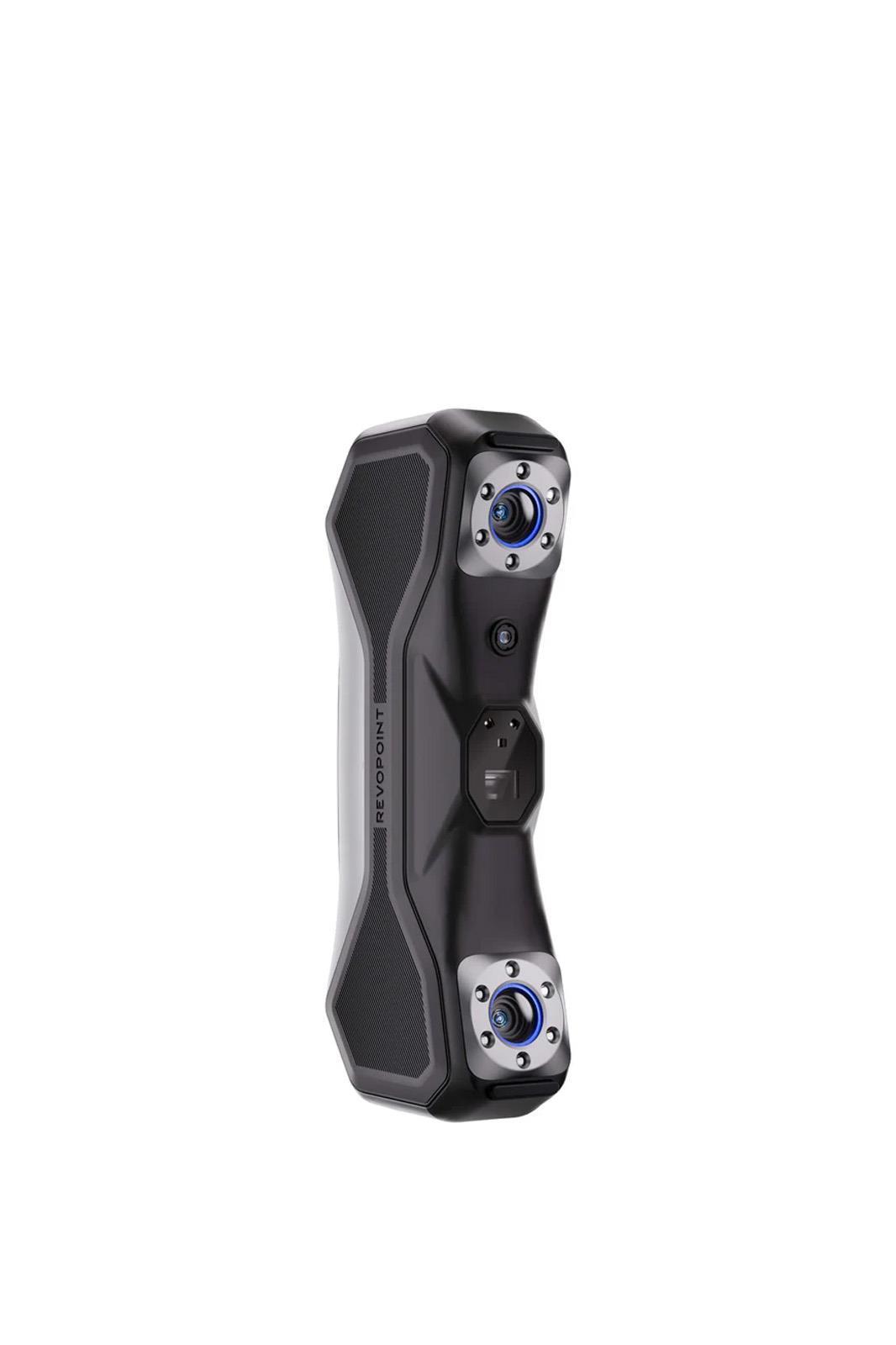

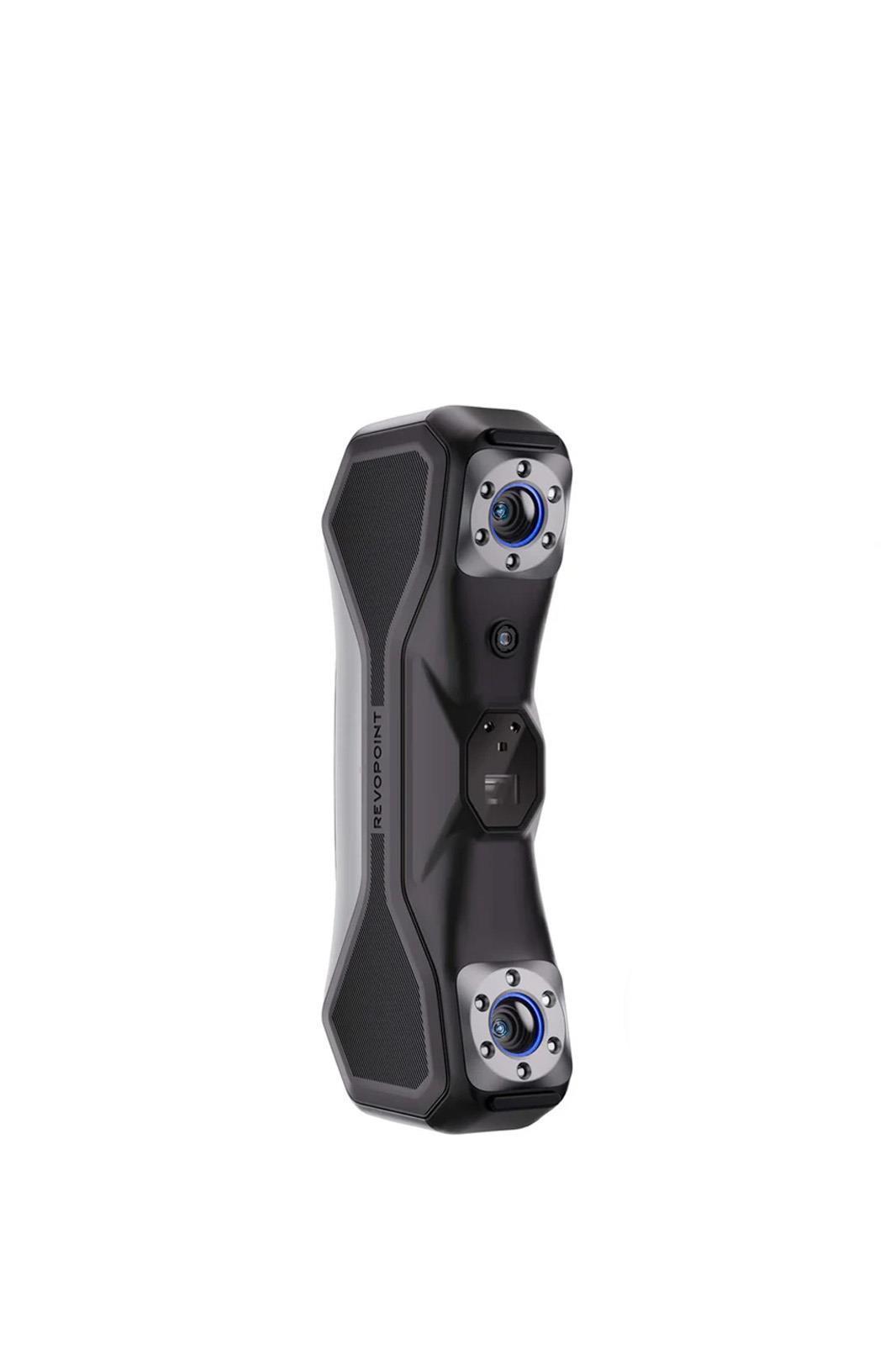

MetroX 3D Scanner & Wrist Strap
Tripod & Scanner Cradle
Power Adapter
Dual-axis Turntable
Calibration Board
Markers(6 mm) × 500
USB Type-A toType-C Cable
USB Type-C to Type-A Adapter
Carrying Case
Sample Bust
Quick Start Guide Certificate &Warranty Card
Ball Marker × 10 (Magnetic)
Dome Marker × 10 (Magnetic)
Pyramid Marker × 4 (Magnetic)
Bar Marker × 4
*The Marker Block Kit simplifies the workflow by making it much quicker to place markers when scanning featureless objects.
Specifications
Name
MetroX
Compatible Operating Systems
Windows 10/11 (64-bit), macOS 11.0 or better
Scanning Type
Handheld and Desktop
Built-in Chip Computing
Depth Map Computing
Technology
Multi-line Laser Scan and Full-field Structured Light Scan
Buttons
4
Scannable Object Size
Small to Medium
Outdoor Scanning
No
Single-frame Precision, up to
0.01 mm
Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Single-frame Accuracy, up to
0.03 mm
Ready to Print 3D Models
Yes
Volumetric Accuracy
0.03 mm + 0.1 mm × L (m)
L is the length of the object
Fused Point Distance, up to
0.05 mm
Working Distance
200 ~ 400 mm
Connector Type
USB Type-C
Single Capture Area at Nearest Distance
160 x 70 mm at 200 mm
Power Requirements
DC 12V, 3A
Single Capture Area at Furthest Distance
320 x 215 mm at 400 mm
3D Light Source
14 Blue Cross Laser Lines
7 Blue Parallel Laser Lines
62 Line Blue Full-field Structured Light
Angular Field of View (H x V)
43 × 33°
Dimensions (L x W x H)
209 × 88 × 44 mm
Maximum Scan Volume
1 × 1 × 1 m
Minimum Scan Volume
10 × 10 × 10 mm
User Recalibration
Scanning Speed, up to
Multi-line Blue Laser: 800,000 Points/s
Full Field Blue Light: 7,000,000 Points/s
Special Object Scanning
Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes.
Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
Depth Camera Resolution, up to
2 Megapixels
RGB Camera Resolution
Supported Accessories
Dual-axis Turntable, Marker Block Kit
Color Scanning
Only in Auto Turntable Mode
CPU
4 core ARM, 2.0 GHz
Tracking Methods
Feature, Marker, Global Marker
Fill Lights
12 Blue LEDs
Minimum PC Requirements(*4)
macOS
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Windows
CPU: Intel i7 10th Gen 10700 or
AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional):
NVIDIA GeForce RTX 3050 (8GB)
Recommended PC Requirements
CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra
RAM ≥ 24GB
CPU: Intel i9 12th Gen or
better
RAM ≥ 64GB
GPU:
NVIDIA RTX 4060 (8 GB) or better
